Anti-static PEEK chip clamp

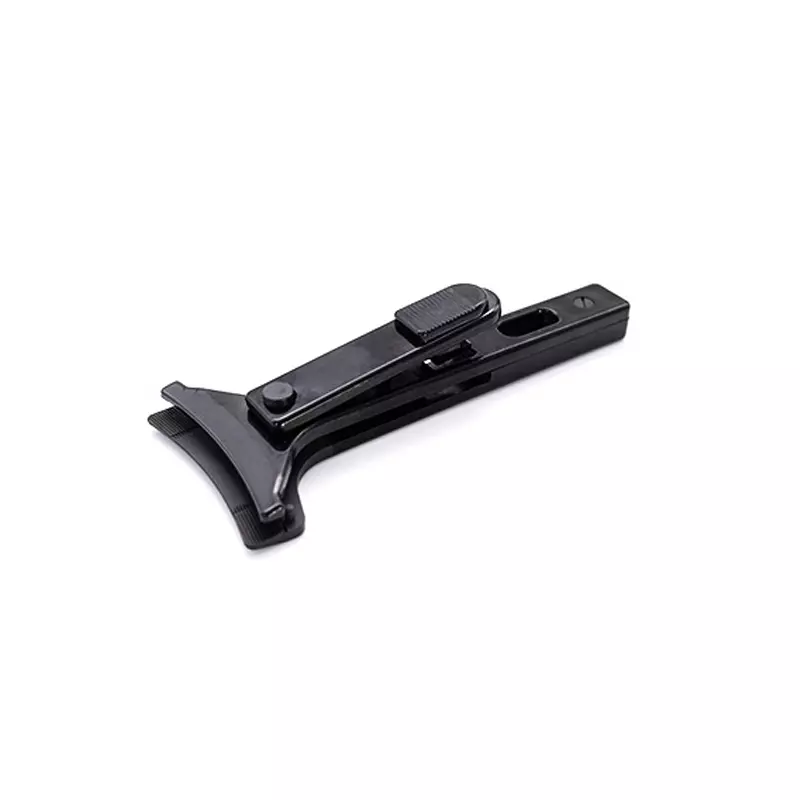

PEEK wafer holder, a handheld tool for inspecting wafers. PEEK contains no halogen elements and does not contaminate semiconductor wafers.

In the global integrated circuit manufacturing sector, tight production capacity has become the norm, which has led to a significant increase in China's investment in integrated circuit-related fields in the past two years. This investment boom has not only driven the vigorous development of the semiconductor device equipment, electronic components and electronic-specific materials manufacturing industries, but also driven a sharp increase in the demand for high-performance materials such as PEEK.

PEEK material, with its outstanding high-temperature resistance, wear resistance, dimensional stability, chemical corrosion resistance and easy processability, has demonstrated unparalleled advantages in the semiconductor manufacturing process. Especially in the field of wafer clamping, PEEK wafer clamps, with their unique performance, have become indispensable ideal tools in semiconductor manufacturing. It not only effectively ensures the integrity of the wafer, but also significantly improves production efficiency and yield. Therefore, in the semiconductor industry, PEEK wafer clamps are receiving increasing attention and wide application.

The core advantages of PEEK chip clamps are as follows:

Pollution-free clamping

The PEEK wafer clamp is made of modified PEEK particle raw materials, which have extremely high purity and contain almost no trace elements that may contaminate silicon wafers, ensuring absolute safety during the clamping process.

Anti-static protection

PEEK wafer clamps feature outstanding anti-static properties, with a surface resistivity of up to 10^5-10^10Ω, and the chuck part even reaching 10^7-10^8Ω. This effectively prevents damage to silicon wafers caused by instantaneous static discharge and provides comprehensive protection for the wafers.

High-temperature stability

PEEK chip clamps can be used for a long time in a high-temperature environment of 260℃, while maintaining high strength, dimensional stability and a small coefficient of linear expansion. It has excellent resistance to sliding wear and fretting wear. When picking up wafers and silicon wafers, it will not cause scratches or residues on the surface, thus ensuring the surface cleanliness of wafers and silicon wafers.
